Radial lead inductors are coil components that are inserted and mounted into through-holes on a circuit board, offering excellent mechanical strength and high current handling capabilities.
主な特徴
Suitable for high current and high power applications
It is suitable for high-current applications because it allows for a large number of turns and the use of thick copper wire.
Robust mechanical strength
Because the lead wires are inserted into the circuit board, it is resistant to physical shocks and vibrations, making it suitable for use in harsh environments such as industrial equipment.
Excellent heat dissipation properties
Due to its large volume, it can efficiently dissipate the generated heat to the outside.
Magnetic shielding structure
The magnetic shielding type confines the magnetic flux leaking from the coil, preventing interference with adjacent components and improving the overall stability of the circuit.
Replacement is relatively easy
You can easily remove the component by desoldering the soldered wires
Product specifications & line up
| Series | Appearance | OD (mm) | Height (mm/max.) | Inductannce (μH） | Rated Current (A) | Resin base | Structure | Spec. Sheet |

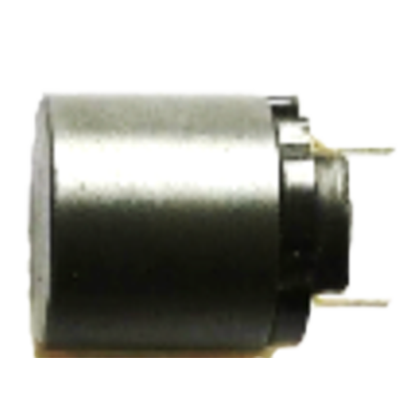

| TZSL108130CA |  | Φ10.8 | 13 | 10～1,000 | 0.33~3.20 | None |  |  |
| TZSL108145CA | | Φ10.8 | 14.5 | 10～1,000 | 0.46~4.50 | None | | |
| TZSL135135CA | | Φ13.5 | 13.5 | 2.2~47 | 2.8～11 | None | | |
| TZSL135150CA | | Φ13.5 | 15 | 10～1,000 | 0.65~5.0 | None | | |
| TZSL165200CA | | Φ16.5 | 20 | 10~47 | 3.5~10 | None | | |
| TZSL165240CA | | Φ16.5 | 24 | 10~47 | 5.0~12 | None | | |
| TZSL105175CB |  | Φ10.5 | 17.5 | 10~47 | 2.0~4.2 | Attaches | | |
| TZSL135190CB | | Φ13.5 | 19 | 10~47 | 4.0~8.0 | Attaches | | |
| TZSL135245CB | | Φ13.5 | 24.5 | 10~47 | 5.0~10 | Attaches | | |
| TZNL4560CA |  | Φ4.5 | 6 | 3.3～470 | 0.07～0.55 | None |  | |
| TZNL5580CA | | Φ5.5 | 8 | 4.7～3,300 | 0.055～1.50 | None | | |
| TZNL6590CA | | Φ6.5 | 9 | 4.7～10,000 | 0.04～2.00 | None | | |
| TZNL80105CA | | Φ8.0 | 10.5 | 1.0～2,000 | 0.12～5.00 | None | | |
| TZNL95105CA | | Φ9.5 | 10.5 | 2.2～5,600 | 0.12～5.60 | None | | |
| TZNL105125CA | | Φ10.5 | 12.5 | 1.2～15,000 | 0.09～6.50 | None | | |
| TZNL120145CA | | Φ12.0 | 14.5 | 10～33,000 | 0.04～4.00 | None | | |
| TZNL125125CA | | Φ12.5 | 12.5 | 1.0～15,000 | 0.13～14.0 | None | | |
| TZNL125145CA | | Φ12.5 | 14.5 | 3.3～1,000 | 0.30～5.50 | None | | |
| TZNL125190CA | | Φ12.5 | 19 | 4.7～3,500 | 0.30～5.80 | None | | |
| TZNL135165CA | | Φ13.5 | 16.5 | 10～3,300 | 0.60～9.80 | None | | |
| TZNL155175CA | | Φ15.5 | 17.5 | 10～2,000 | 0.83～10.0 | None | | |
